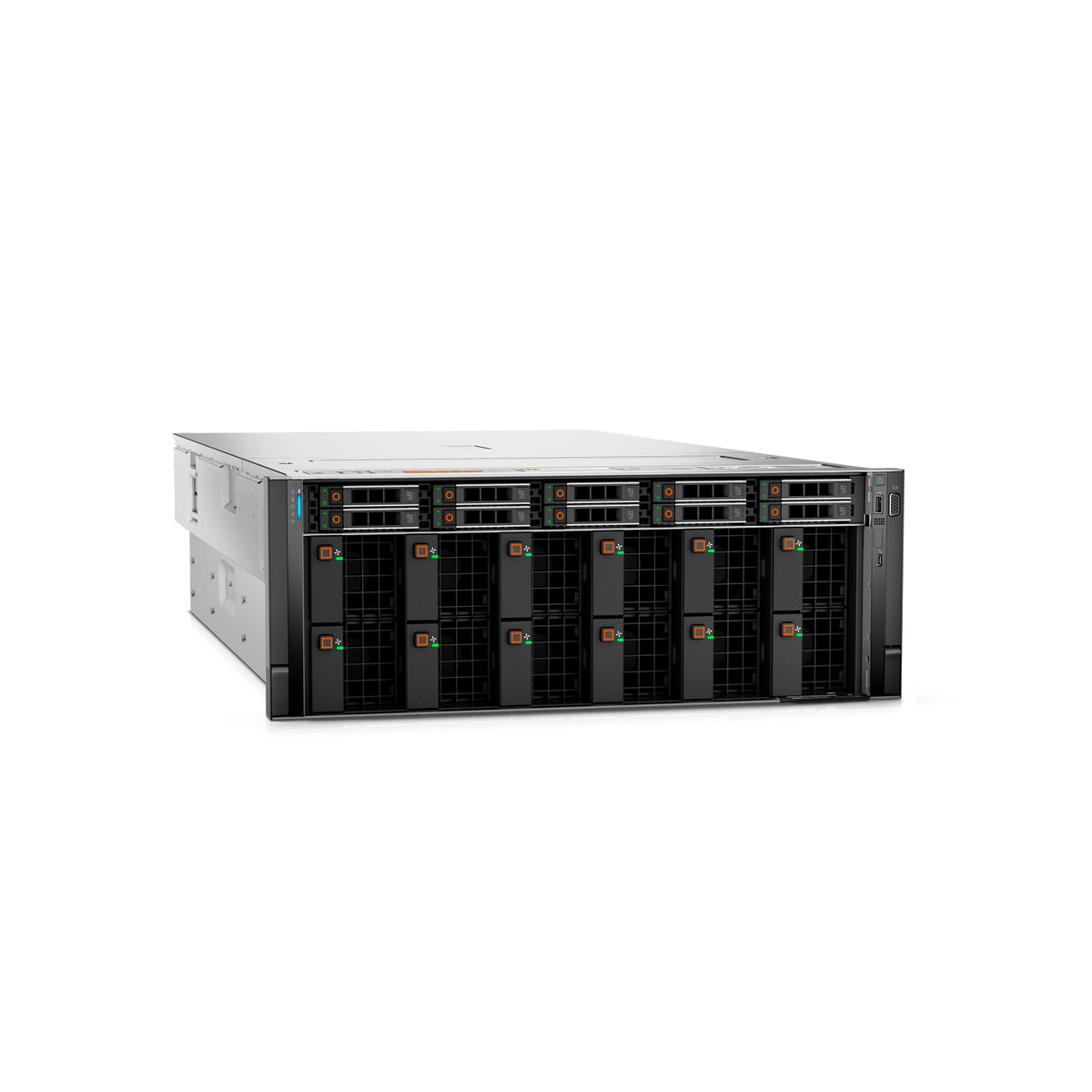

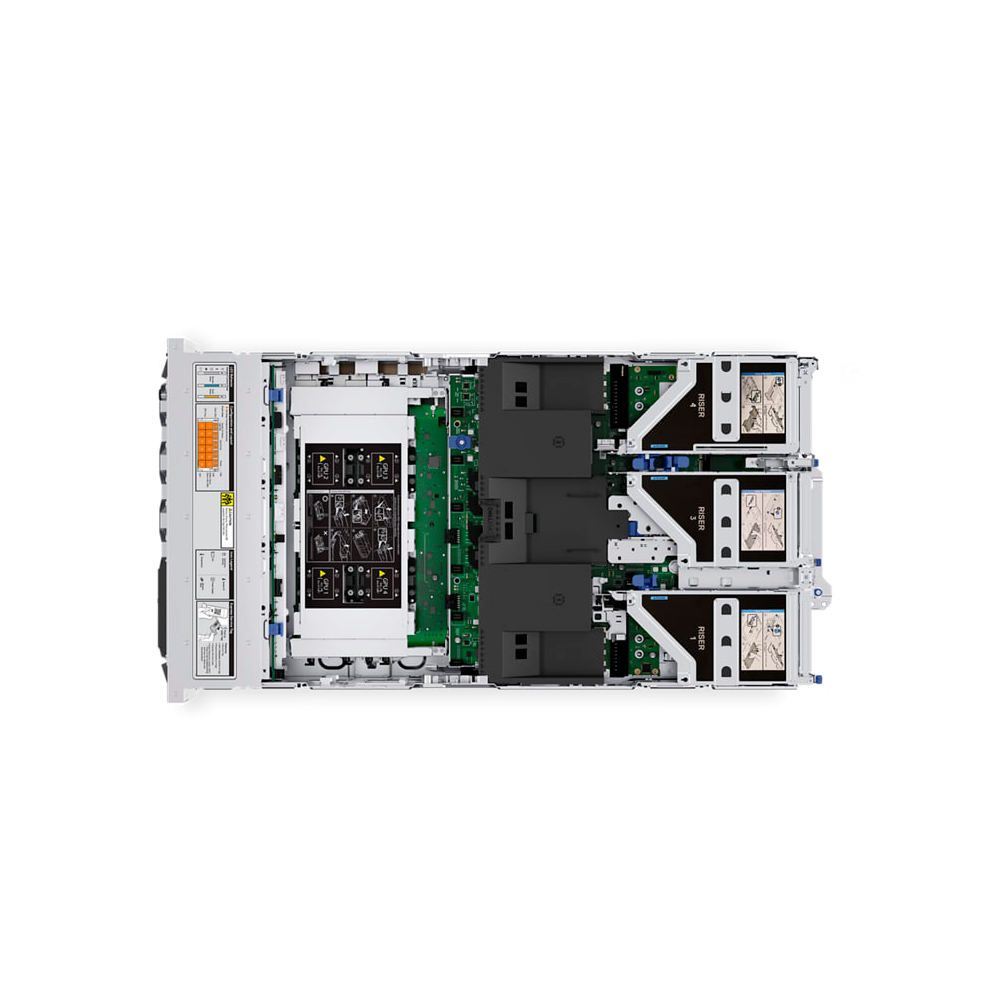

Dell PowerEdge XE8545

Technical Specification

CPU:

Two 3rd Generation AMD EPYCTM processors (280 W) with up to 64 cores per processor

Memory:

32 x DDR4

Bandwidth up to 3200 MT/s

Accelerators:

4 x NVIDIA A100 GPUs with NVIDIA NVLink

Options: 40 GB/400 W or 80 GB/500 W

Front Storage:

10 x 2.5” Hot Plug SAS/SATA

Up to 8 x 2.5” NVMe

Controllers:

BOSS S1.5, H745

I/O:

1 x PCIe Gen4 LP (x16)

1 x PCIe Gen4 FH (x16)

1 x PCIe Gen4 FH (x16) or 2 x PCIe Gen4 FH (x8)

Thermal:

Air Cooled Up to 35C for 400 W GPUs or 25C for 500 W GPUs

Fans:

12 x Front Hot Plug Fans, 6 x Internal Fans (CPU)

Embedded Management:

iDRAC9

iDRAC Direct

Quick Sync 2.0

OpenManage SW:

iDRAC9 Enterprise

Power Manager

SupportAssist

Update Manager

Power Supplies:

4 x Hot-plug redundant 2400 W AC Power Supply

Rack Height:

4U

Ports:

Front: 1 x USB 2.0 – iDRAC dedicated

Rear: 1 x USB 3.0, 1 x USB 2.0

Security:

Cryptographically signed firmware

Secure Boot Secure Erase

Silicon Root of Trust

System Lockdown

TPM 1.2/2.0, TCM 2.0 optional

Secure Memory EncryptionTM

Secure Encrypted VirtualizationTM

Dimensions (add LxW):

Depth: 810 mm Width: 447 mm Height: 86.8 mm

Rack Unit:

4U Rack Server

Embedded NIC:

2x 1GbE LOM

Networking Options:

OCP x16 mezz 3.0

Operating Systems & Hypervisors:

Ubuntu

Windows Server with Hyper-V

Red Hat Enterprise Linux

VMware ESXi

OEM-ready version available:

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Recommended support:

Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge

solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information.

Availability and terms of Dell Services vary by region.

Recommended services:

ProSupport Plus with SupportAssist provides proactive and predictive support for critical systems. ProSupport provides

comprehensive hardware and software support. Get more from your technology starting on day one with ProDeploy Enterprise Suite

deployment offers.
