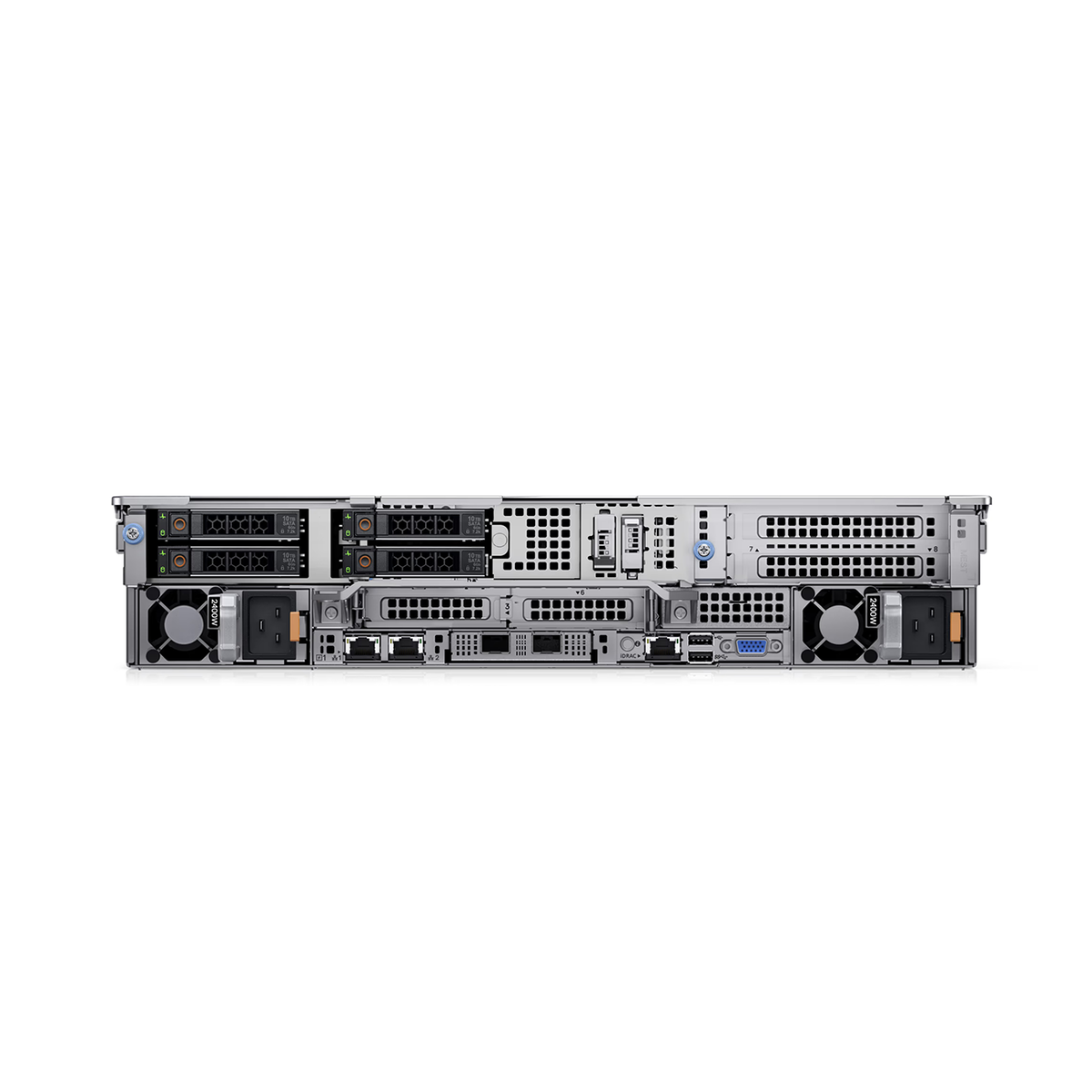

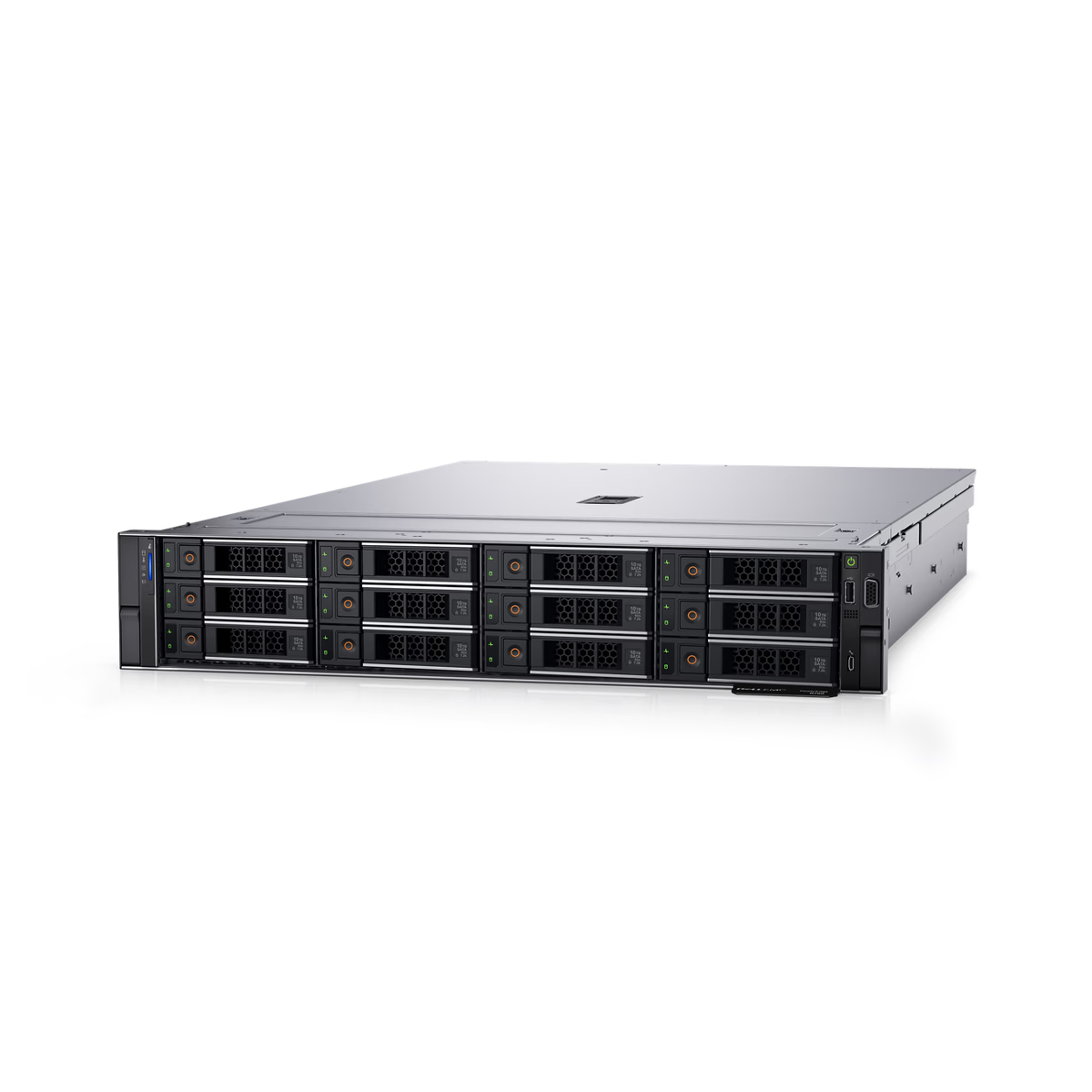

Dell PowerEdge R750
0.00$
Tech Specs & Customization
Processor
Up to two 3rd Generation Intel® Xeon® Scalable processors, with up to 40 cores per processor
Direct Contact Liquid Cooling (DCLC) option: Yes
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset
Intel® C620 series chipset
Accelerators
Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators
Memoryi
DIMM Speed
Up to 3200 MT/s
Memory Type
RDIMM
LRDIMM
NVDIMM
Intel® Persistent Memory 200 series (BPS)
Memory Module Slots
32 DDR4 DIMM slots
Maximum RAM RDIMM
RDIMM 2 TB
LRDIMM 8 TB
NVDIMM 128 TB
Intel Persistent Memory 200 series (BPS) 8 TB
Storage
Front Bays
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear Bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Storage Controllers
Internal Controllers
PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N
External Controllers
PERC H840, HBA355E
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Boot Optimized Storage Subsystem (BOSS-S1):HWRAID 2 x M.2 SSDs 240 GB or 480
Internal Dual SD Module or USB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
RACADM CLI
iDRAC RESTful API with Redfish
IPMI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
800 W Platinum AC/240 VMixed Mode
1100 W Titanium /240 V Mixed Mode
1100 W DC -48 — -60 V
1400 W Platinum AC/240 V Mixed Mode
2400 W Platinum AC/240 V Mixed Mode
Hot plug power supplies with full redundancy option
Ports
Network Options
2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x RJ-45
1 x VGA (optional for liquid cooling configuration)
Internal Ports
1 x USB 3.0
Slots
PCIe
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
Video Card
1 x VGA (optional for liquid cooling configuration)
Bezel
Optional LCD bezel or security bezel
Form Factor
2U rack server
Dimensions & Weight
Height
86.8 mm (3.41 inches)
Width
482.0 mm (18.97 inches)
Depth
758.29 mm (29.85 inches) – without bezel
772.13 mm (30.39 inches) – with bezel
Weight
31.8 kg (70.10 lbs)
Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your. PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
