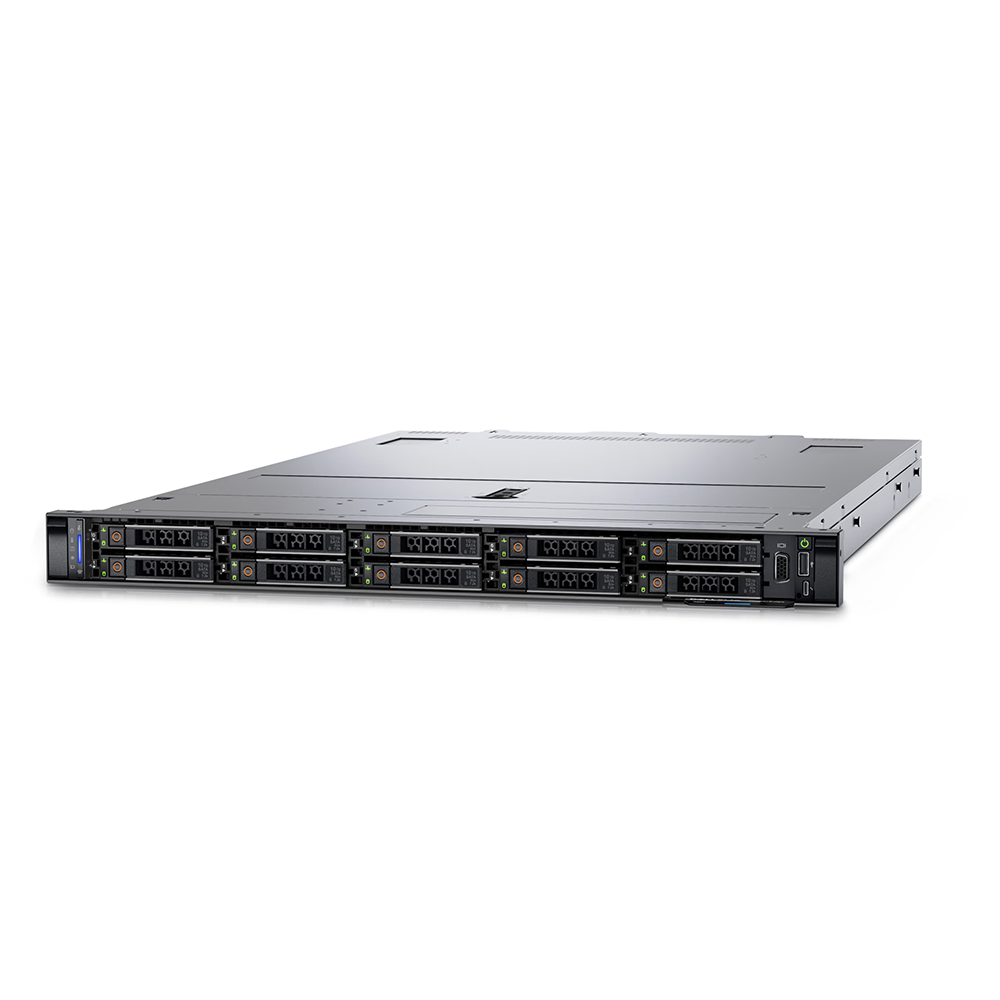

Dell PowerEdge R650
0.00$
Tech Specs & Customization
Processor
Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset
Intel®C620A chipset
Accelerators
Up to three 75 W single-width GPU
Memory
DIMM Speed
Up to 3200 MT/s
Memory Type
RDIMM
LRDIMM
NVDIMM
Intel® Persistent Memory 200 series (BPS)
Memory Module Slots
32 DDR4 DIMM slots
Maximum RAM
RDIMM 2 TB
LRDIMM 4TB
NVDIMM 128 GB
Intel® Persistent Memory 200 series (BPS) 8TB
Storage
Front Bays
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Rear bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Storage Controllers
Internal Controllers
PERC H745, H345, HBA355I, H755, H755N
External Controllers
PERC H840, HBA355E
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or
Internal USB 3.0
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
Red Hat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios Core
Nagios® XI
Power Supplies
800 W Platinum AC/240 V Mixed Mode
1100 W Titanium AC/240 V Mixed Mode
1400 W Platinum AC/240 V Mixed Mode
1100 W DC -48 — 60 V
Hot plug power supplies with full redundancy option
Ports
Network Options
2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

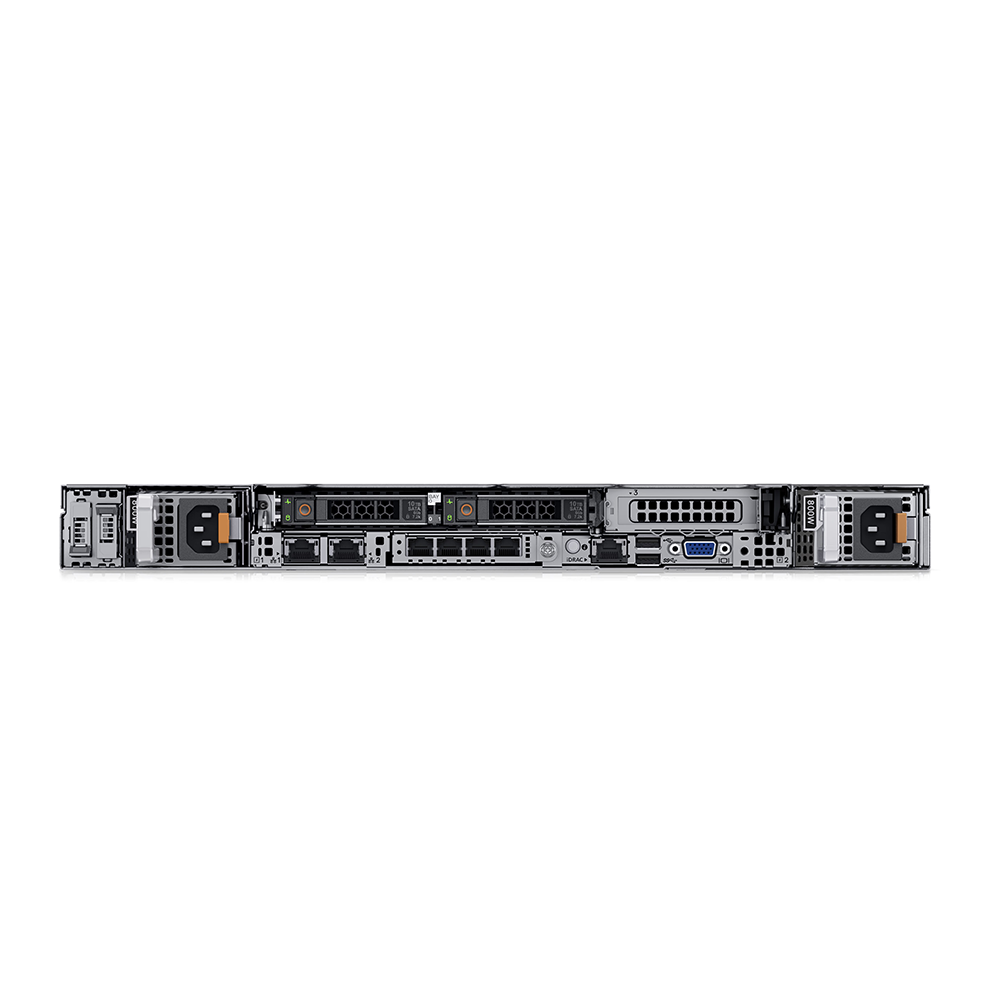

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x RJ-45
1 x VGA (optional for liquid cooling configuration)
Internal Ports
1 x USB 3.0 (optional)
Slots
Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
Video Card
1 x VGA (optional for liquid cooling configuration)
Bezel
Optional LCD bezel or security bezel
Form Factor
1U rack server
Dimensions & Weight
Height
42.8 mm (1.68 inches)
Width
482 mm (18.97 inches)
Depth
809 mm (31.85 inches) – without bezel
822.84 mm (32.39 inches) – with bezel
Weight
21.2 kg (46.7 lbs)
Rack Support
ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
